ARP 208-4303 Head stud kit 1994-01 Acura Integra GSR B18C1 B18C5 B20VTEC or LSVTEC and JDM B16B

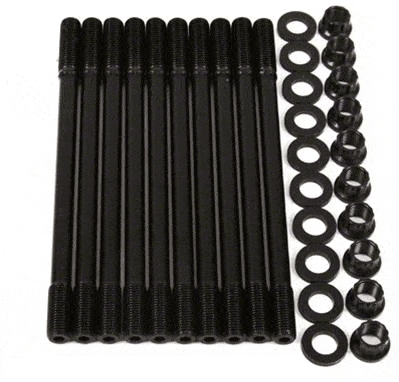

ARP 208-4303 Head stud kit is for the Acura Integra GSR DOHC VTEC. Cylinder Head Studs are the Pro Series with 12-Point Head, for use on Acura 1.8L, VTEC B18C, B18C1, B18C5 B20VTEC or LSVTEC and B16B engines, Kit includes (10) studs which are 11mm diameter along with matching nuts, washers, and assembly lube.
ARP 208-4303 Integra B18C GSR head studs install instructions
Obtaining the optimum cylinder head-to-block sealing is especially critical in small displacement engines employing high compression pistons or power adders like turbochargers, nitrous oxide and superchargers. That’s why ARP head studs are popular among leading Sport Compact/Import racers.
You should know that ARP uses a premium grade 8740 alloy that is rated far superior to “aircraft” quality. Then, each stud is precisely heat-treated to 200,000 psi. Following heat-treat, each stud is centerless ground to make it as close to perfectly concentric as possible. This procedure involves about ten very slight cuts and results in an exceptionally straight part. It’s important to note that lesser quality studs are not even centerless ground – the material is thread rolled in bar stock form (mostly before heat-treat, when the material is easier to machine). Because ARP studs are manufactured to such exacting tolerances, you will note that gaskets and cylinder heads literally glide into position and are perfectly aligned – something that won’t happen with inferior quality head studs.
ARP studs are thread rolled after heat-treat, which gives them about 1000% (that’s ten times) better fatigue strength than those studs that are threaded prior to heat-treat. You will also note that ARP offers specially undercut studs for several engines. This procedure (done only to the shorter studs) more equalizes the “stretch” of both studs, which makes for a more consistent clamping force – one that compensates for head gasket compression when the head is installed. This helps prevent blown head gaskets, and assures optimum sealing!
Premium parallel ground washers are also included with each kit.
