Hondata K-PRO for Honda S2000 2000-2005
This is a specially adapted ECU which allows the 2000-2005 S2000 to run from a RSX ECU. The engine crank and cam sensors must be changed to equivalent 2006-2007 parts - see below.

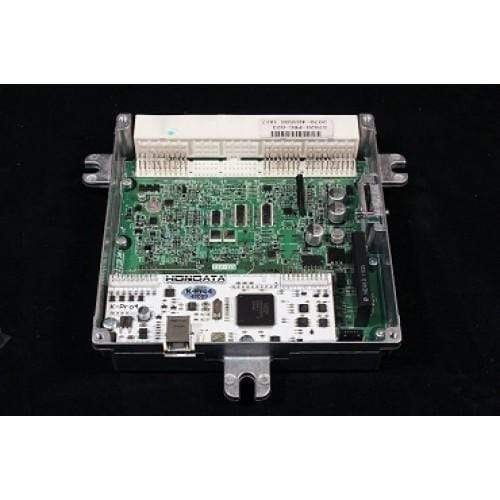

The S2000 KPro includes a new or user supplied RSX (PRB) ECU adapted for the S2000, and a wiring harness for the crank and cam sensors. It does not include the Honda parts - see mechanical modifications below. All user supplied ECUs must be PRB A01-A12 and in perfect working order. We will not use any other ECUs for the S2000.
Features
- Factory reliability for your S2000.
- Easy starting.
- Dash water temperature display functions normally.
- All the features of the K-Pro:
- Injector re-calibration.
- Fully mapped boost tables.
- Nitrous control.
- Datalogging.
- Boost control.
- And more...
See the K-Pro page for more information.
Mechanical modifications Required
The following items must be replaced before the S2000 K-Pro can be used. These parts are not supplied by Hondata and should be purchased from a Honda dealer.
- Crank sensor 37500-PZX-003
- Crank wheel 13622-PCX-013
- TDC sensor 37510-PZX-003
- TDC wheel 14112-PCX-003
- Valve cover 12310-PCX-020
- Drain plug washer (for PCV valve) 94109-14000
- PCV valve 17130-PCX-003
- IAT sensor 37880-P05-A00 (not required, but stock IAT will read about 30 degrees hotter)
- Fits inside the ECU
- Designed and assembled in USA
- USB connection for speed and compatibility
- KManager Windows based software for parameter & table editing, calibration uploading and datalogging.
- Many built in calibrations for common engine combinations
- Built in datalogging to a laptop
- On board datalogging memory (8 MB memory, 10-215 minutes datalogging)
- Adjustment for different sized injectors, with overall fuel trim.
- Configurable for any MAP sensor (to 5 Bar and above)
- TPS based table lookup for ITBs
- Engine protection from lean air fuel ratios, over boost and low oil/fuel pressure.
- Expanded fuel and ignition tables, both in rpm and load, to 60 lbs boost and 11,000 rpm (these are not the upper limits)
- Launch control with anti-lag
- Three multi purpose outputs for nitrous control or similar.
- Supports lambda tracing from the stock wideband o2 or aftermarket wideband.
- PWM output for boost control
- Bluetooth support and Hondata Mobile app.
- Ethanol sensor input for flex fuel capability.
- Alternate speed sensor input.
- Dash output serial & CAN streams.
- Live tuning and auto tune.
KManager editing software features:
- High and low speed 16 x 20 ignition and fuel tables at multiple cam angles for correct VTEC and VTC tuning.
- Injector size fuel trim
- Fuel trim for starting, throttle tip in and individual cylinder trim
- Rev limiter with fuel cut
- Launch control with anti-lag
- Adjustable VTEC window with load and throttle control
- Adjustable idle speed
- MAP sensor type and calibration
- Adjustable boost cut with hot and cold settings
- Closed loop control
- Air temperature compensation
- Fuel and ignition correction based on gear
- Closed loop
- Three general purpose outputs for nitrous control, quad boost control or similar
- On board datalogging trigger conditions
NOTE: Please see Important CARB/EPA Notes for tis product
